| Brand | Vorel |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Power | 1.3 kW |
| Flame temperature | 1300 ˚C |
| Gas type | butane from an external cylinder |
| Gas tank type | disposable, self-sealing, under direct pressure, type EN417 |
| Gas tank connection type | 90˚ TWIST |
| Gas usage | 96 g/h |
| Working time | 30 min |
| Piezo ignition | yes |
| Flame adjustment | yes |
| Weight with empty tank | 0.16 kg |
| Application | jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming, |
| Application contd | heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials |
| Symbol | 73413 |

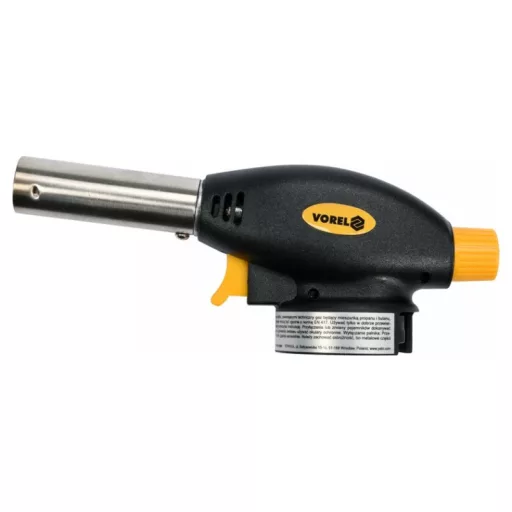

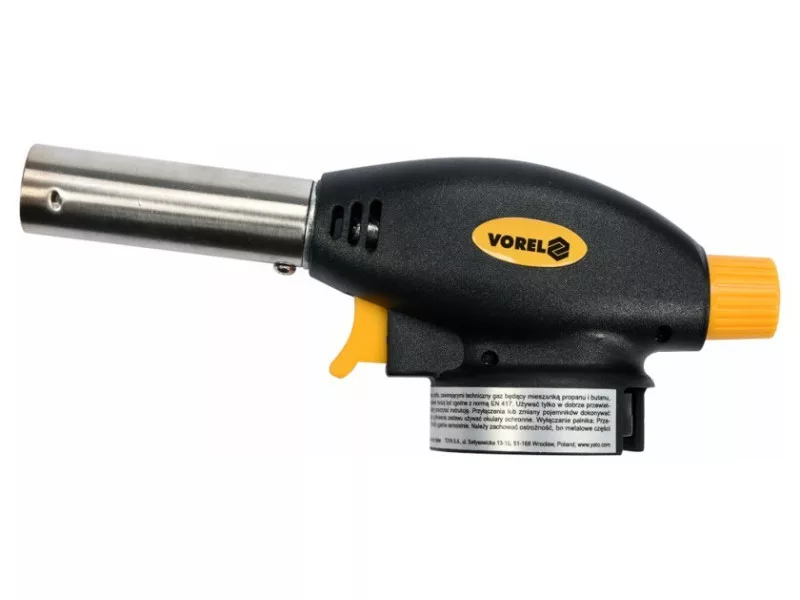

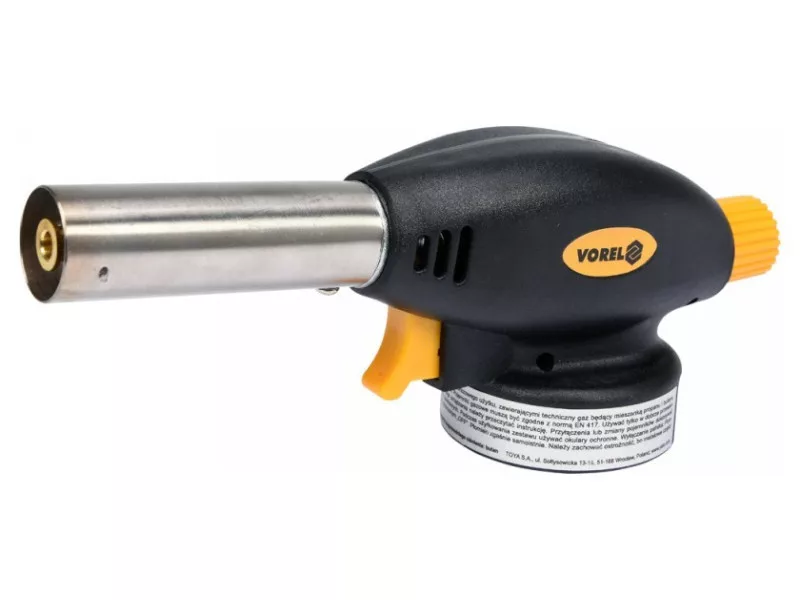

Gas burner 73413 with ignition PIEZO. It is powered by butane gas from an external cylinder - in accordance with EN417. Cylinder connection to the burner type TWIST.
The burner with a power 1.3 kW allows to reach a temp 1300°C. Gas consumption 96 g/h. The burner has adjustable flame power.
Installation of gas container:
The panic is adapted only to EN 417-compliant tanks equipped with a non-threaded quick-connector with a cutout in the mounting flange. It is forbidden to connect tanks with other type of attachment and tanks that do not comply with EN 417.
Panic

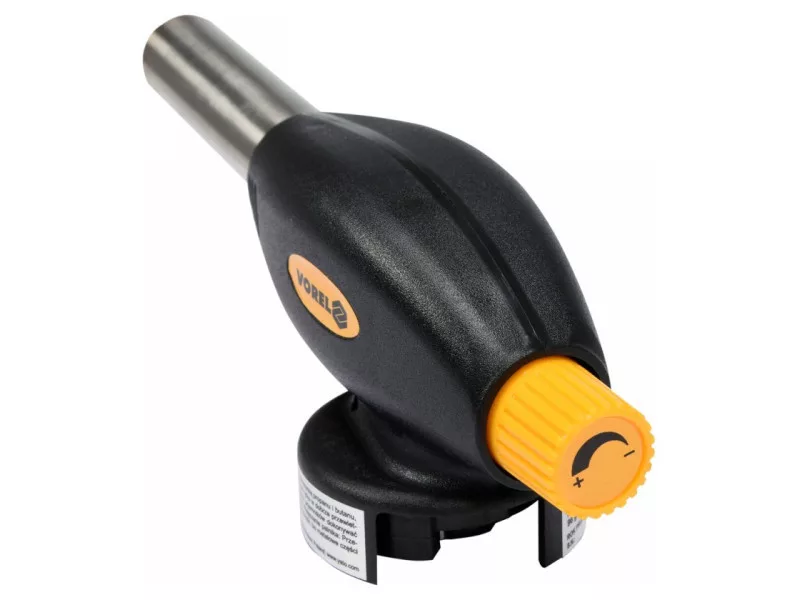

- Close the gas valve, to do this, turn the regulator knob as far as it will go in the direction marked "-". Make sure that the burner connection gasket is not damaged or worn out.
- Turn the gas connection so that the plastic ring plates are between the metal parts of the connection.
- Connect the tank to the burner so that the protrusion of the gas connection hits the notch of the tank flange.
- Then press the tank to the burner and turn it clockwise as far as it will go.
Purpose:
Jewelry work, handicrafts, model making, catering, and household applications:
- firing of small metal or wooden surfaces
- firing of fireplaces, grills, stoves
- heat bending and forming
- heat welding and gluing
- heat welding and gluing
./li> - removal of baked screws
- heating and thawing
- shrinking of heat shrinkable materials
- cooking
Usage warnings:
Direct pressure category - propane-butane.
The device should be used only with disposable containers containing technical gas, which is a mixture of propane and butane, equipped with a non-threaded, self-sealing quick connector with a cutout in the mounting flange.
Gas containers must comply with EN 417.
Use only in well-ventilated areas.
Read the instructions before using this device.
Use safety glasses when using the kit.
Make connections or changes to containers in a flameless or ignition-free atmosphere, away from bystanders.
Be careful, because the metal parts of the burner have been heated during operation. Leave to cool down.
