| Brand | Fala |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Power | 600 W |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Max. rotations | 3000 min⁻¹ |
| Max. lifting height | 6.5 m |
| Vertical range | 65 m |
| Max. capacity | 140 l/min |
| Water outlet diameter | 40 x2, 100 x1 mm |
| Wire length | 2 m |
| Max. supply water temperature | 90 ˚C |
| Wire insulation type | H05VV-F |
| Wire section area | 3Gx0.75 mm² |
| Electric insulation class | I |
| Protection grade | IPX4 |
| Weight | 8 kg |
| Set includes | sanitary pump with a built-in non-return valve, clamp x4, cap with nuts and seals x3 |
| Symbol | 75951 |

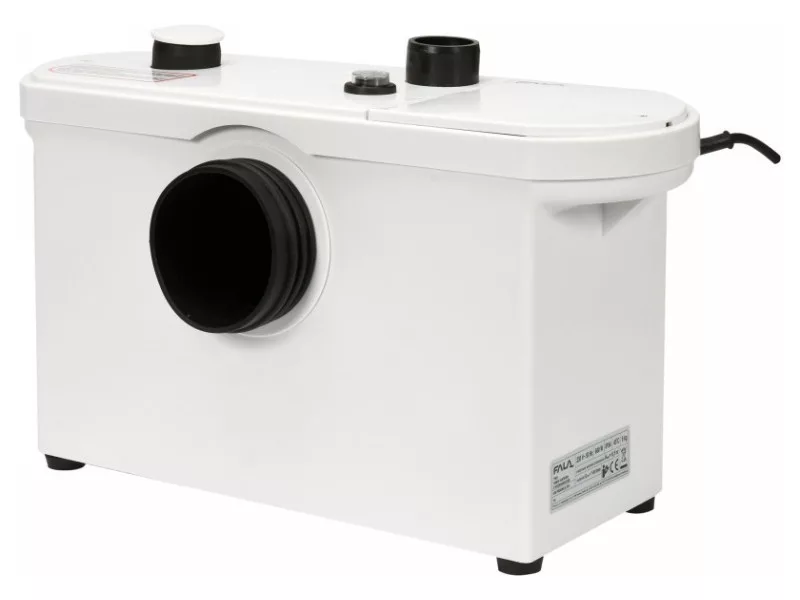

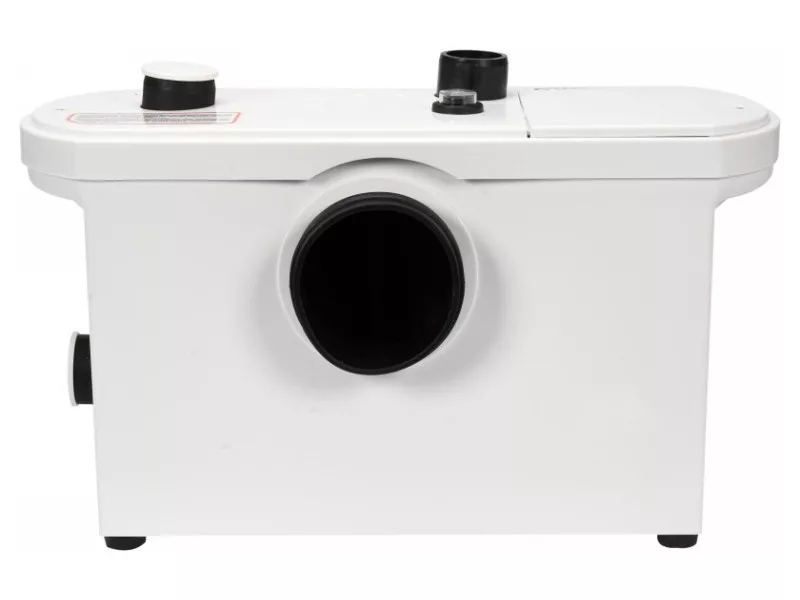

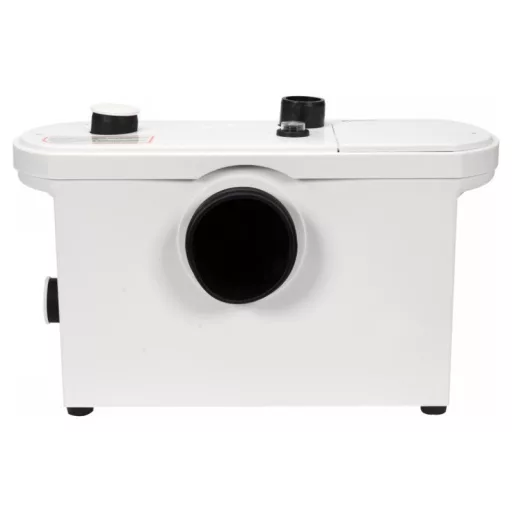

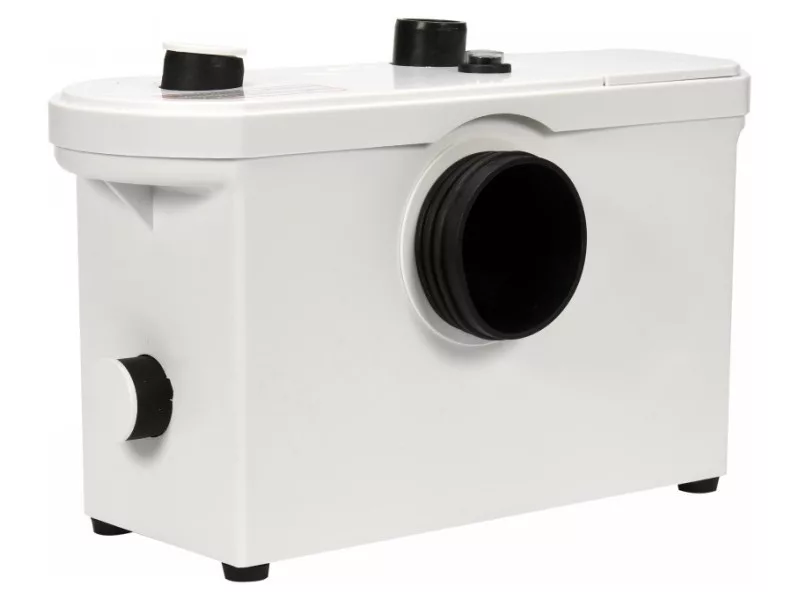

Efficient sanitary pump with grinder equipped with a quiet 600 W motor. The pump allows for the installation of sanitary devices where there is no possibility of connecting them to a gravity sanitary sewage system.
- reliable membrane switch that guarantees precise control of the device's operation for many years
- possibility of connection from the side and from the top
- fully automatic pump operation
- compact dimensions make the pump fit behind any traditional WC compact
- possibility of connecting three additional devices, e.g. dishwasher, sink, bidet, washing machine, even a low shower tray or bathtub
Purpose / application
Rooms in a household without the technical possibility of connecting sanitary devices to a gravity sanitary sewage system - converted basements, attics, dressing rooms, and other rooms for sanitary needs.
Possibility of connecting three additional devices, e.g. dishwasher
- sink
- bidet
- washing machine
- low shower tray
- bathtub
Parameters
- power: 600 W
- maximum flow: 140 l/min
- maximum temperature: 90°C
- number of inputs: 3 (100 mm and 2 x 40 mm)
- degree of protection: IPX4
Usage warnings:
Warning! Device is designed only for pumping water containing fecal matter. It is forbidden to throw hygiene products to the toilet connected to the pump, such as: paper towels, sanitary napkins, tampons and other similar products.
