| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Holder size | 3/4" (19.0 mm) |
| Toolholder type | Driver |
| Stroke mechanism type | TWIN HAMMER |
| Max. working pressure | 0.63 MPa |
| Required air flow | 580 l/min |
| Rotations | 4600 min⁻¹ |
| Max. torque | 2800 Nm |
| Quick coupler size | standard |
| Air connection diameter (PT) | standard |
| Air supply hose inside diameter | 1/2" (12.7 mm) |
| Length | 253 mm |
| Casing material | aluminum |
| Rotation switch | yes |
| Acoustic pressure | 90.0 ± 3.0 dB(A) |
| Acoustic power | 101.0 ± 3.0 dB(A) |
| Vibrations | 11.11 ± 1.43 m/s² |
| Weight | 7 kg |
| Set includes | pneumatic wrench, hose connector |
| Application | industry, mechanical workshops, car services |
| Symbol | YT-09580 |

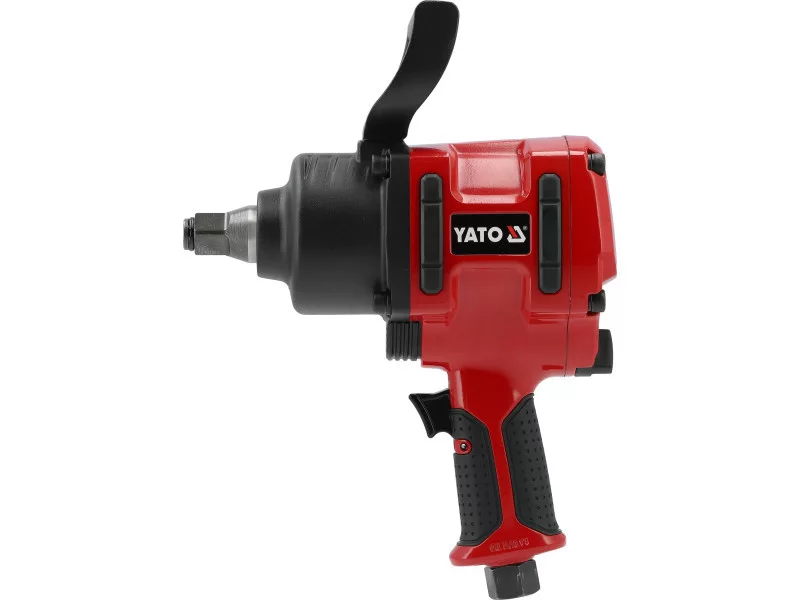

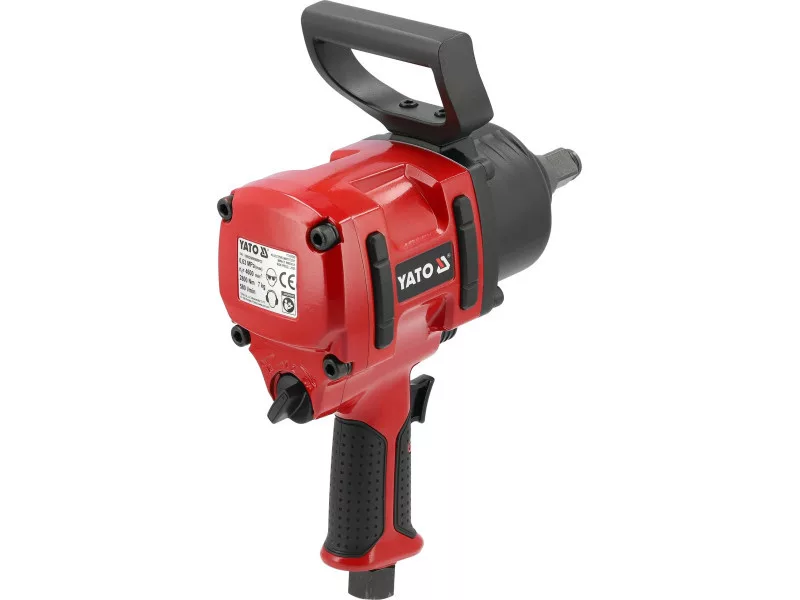

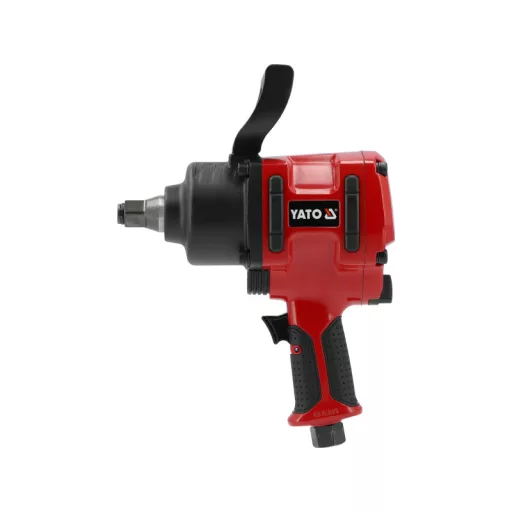

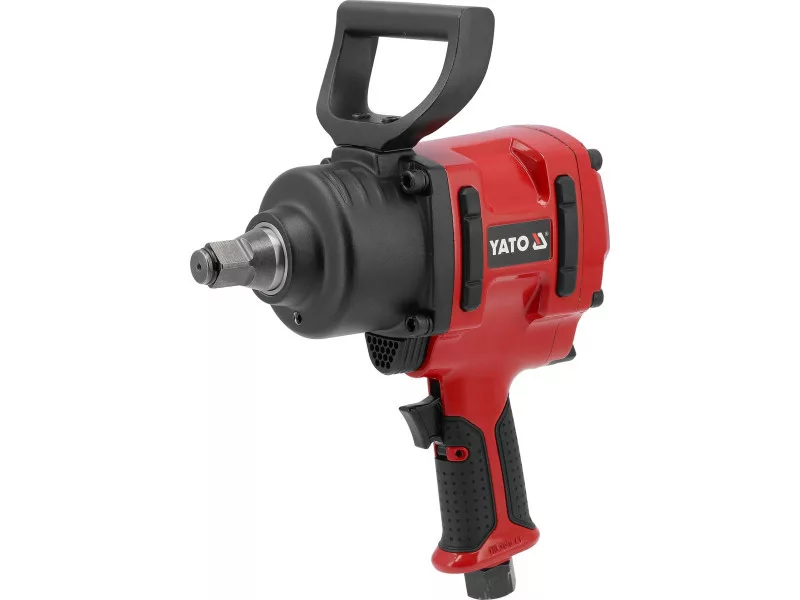

Pneumatic wrench designed for intensive use in industrial conditions, mechanical workshops, and car services. The Twin Hammer impact mechanism provides optimal balance between impact force and tool durability, allowing for quick loosening and tightening of high torque screws.
The aluminum housing combines lightness with durability, and the compact size and 7 kg weight facilitate precise handling even in hard-to-reach places. The wrench is equipped with a direction switch for quick change of operating mode, as well as standard quick coupler and air inlet for universal use with pneumatic installations.
The set also includes an air hose connector, allowing for immediate connection of the tool to a pneumatic installation. The wrench ensures reliability and efficiency, precise control of torque, and comfortable work in the most demanding applications.
Technical parameters:

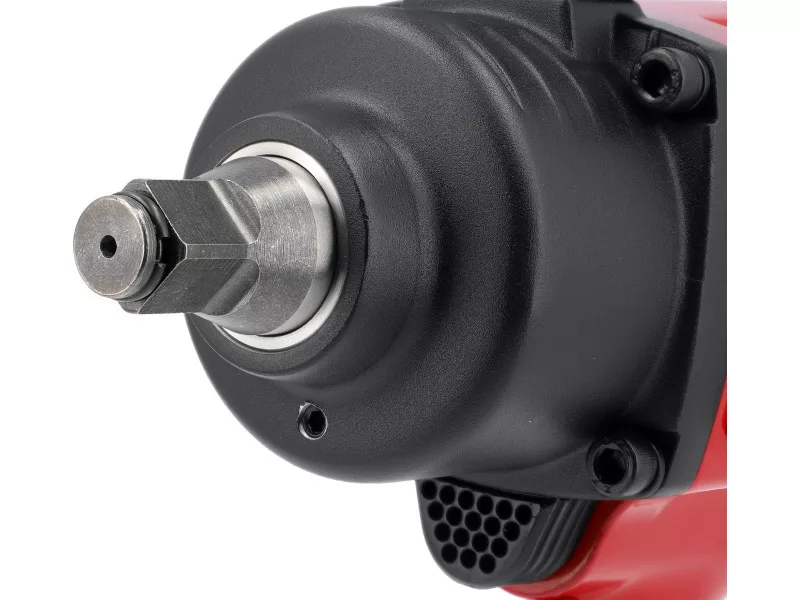

- tool holder: 3/4" (19 mm)
- type of tool holder: chuck
- impact mechanism: Twin Hammer
- rotational speed: 4600 min⁻¹
- max. torque: 2300 Nm
- max. loosening torque: 2800 Nm
- recommended continuous torque: 1800 Nm
- max. operating pressure: 0.63 MPa
- average air consumption: 580 l/min
- air hose diameter: 1/2" (12.7 mm)
- quick coupler and air inlet: standard
- air inlet: 3/8"
- durable aluminum housing

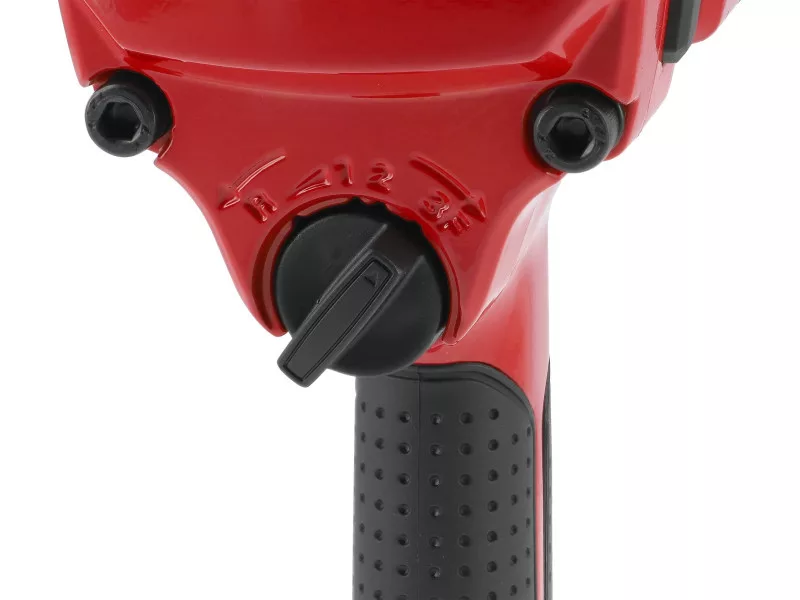

- direction switch
- total length: 253 mm
- weight: 7 kg
- includes air hose connector
