| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Type | columnar |
| Max. lifting capacity | 12 t |
| Min. lifting height | 235 mm |
| Max. jack and pistons length | 590 mm |
| Base dimensions | 186x175 mm |
| Inner piston length | mm |
| Outer piston length | 265 mm |
| Thread length with saddle | 90 mm |
| Head diameter | 56 mm |
| Surface finish | hammer painted, nickel plated |
| Weight | 14.3 kg |
| Symbol | YT-1715 |

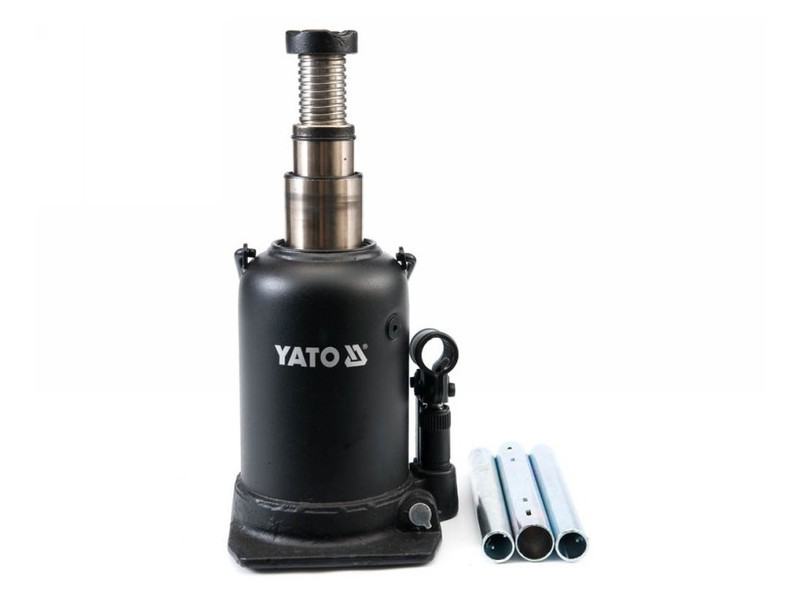

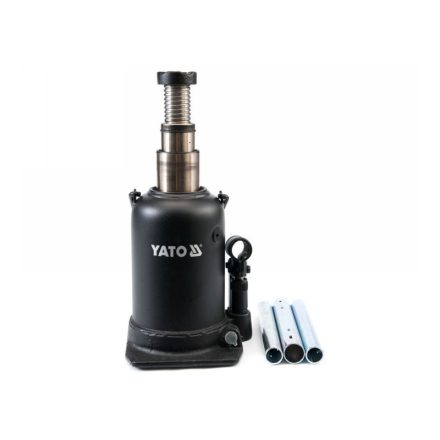

A professional two-stage pole lifter by YATO. It has a valve system that precisely doses the oil stream, which, despite the small piston stroke, ensures its high efficiency under maximum load. It is characterized by its small size and weight, which is important for moving and storage. Indispensable in garages and vehicle service stations. - pole jack - jack arm - instruction manual - warranty card
Usage warnings:
Before using the elevator, read the instructions carefully.
Do not exceed the lifting capacity of the elevator.
It is imperative to place the jack on a firm, level and stable surface.
Do not perform any activities under an elevated and unsecured vehicle.
