| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |

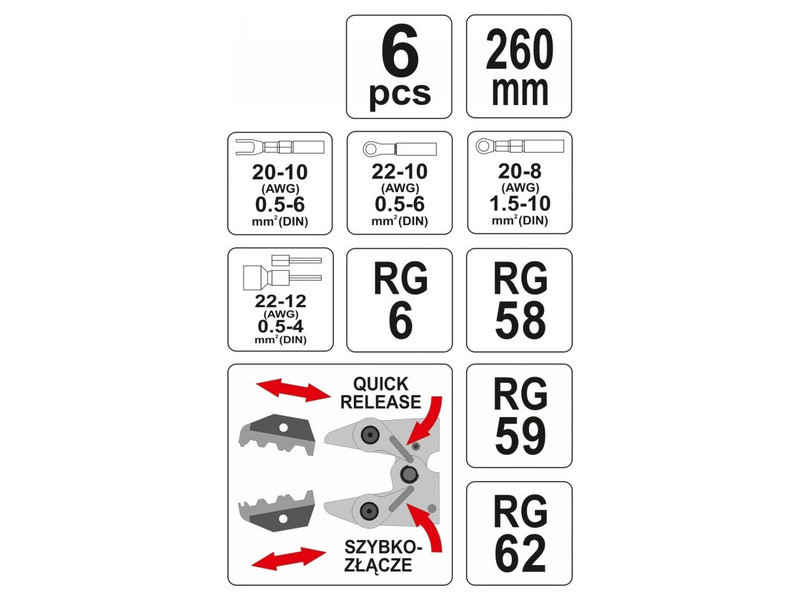

| Cross section A mm2 | 0.5-6 |
| Cross section A AWG | 20~10 |
| Cross section B mm2 | 0.5-6 |
| Cross section B AWG | 22~10 |
| Cross section C mm2 | 1.5-10 |
| Cross section C AWG | 20~8 |
| Cross section D mm2 | 0.5-4 |
| Cross section D AWG | 22~12 |
| Cross section RG | RG6, RG58, RG59, RG62 |
| Length | 225 mm |
| Body material | carbon steel |
| Surface finish | blackened, oxidized |
| Handle material | PP, TPR |
| Rapid release | yes |
| Pcs | 6 |
| Application | electric |
| Symbol | YT-2245 |

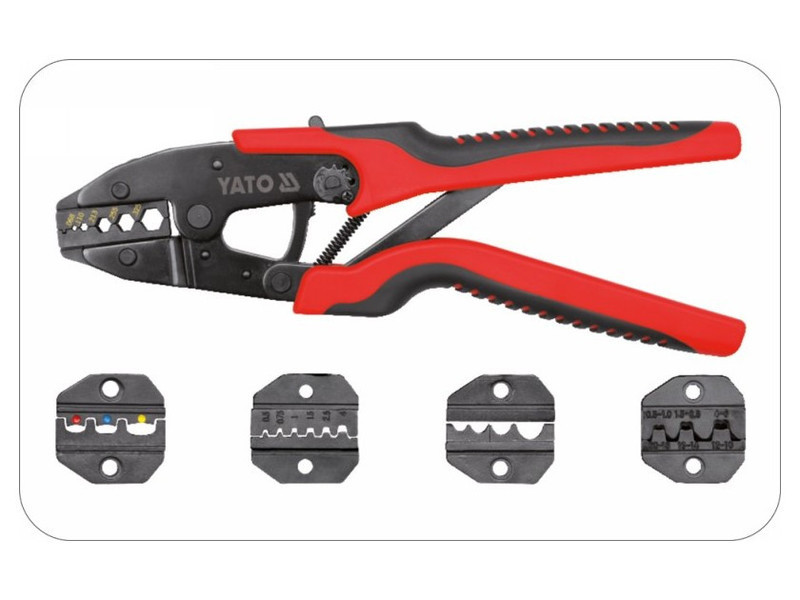

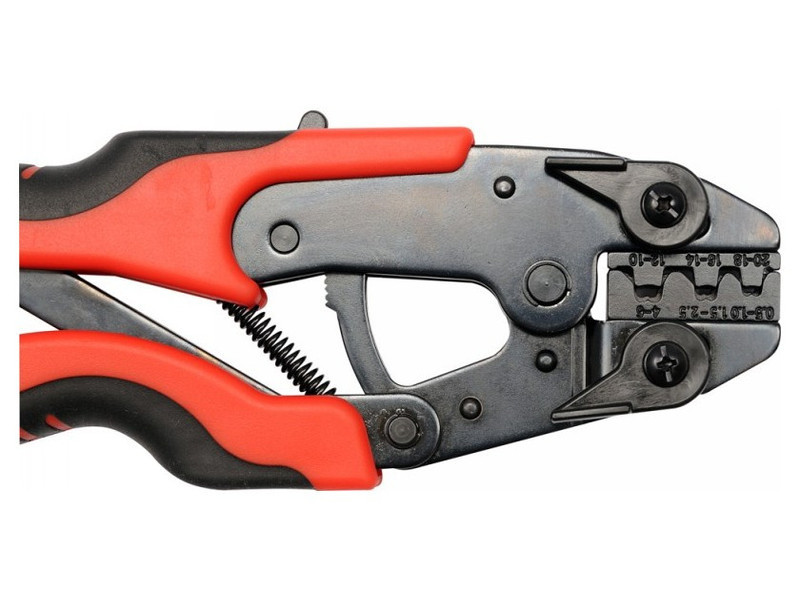

The pliers YT-2245 for crimping the most popular typesóof connectorsówith a blackened surface that protectsóagainst corrosion and two-component plastic handle caps. The precision jaw design facilitates the initial placement of the connector, while the longer-than-standard handles and the ratcheting mechanism clamp it precisely and firmly without using a lot of force.
- five interchangeable dies for crimping the most popular typesóof connectorsóincluding. non-insulated, insulated, crimped, sleeve, antenna connectors
- ratchet mechanism with adjustable clamping force
- two-stage die seat design for non-insulated connectorsós

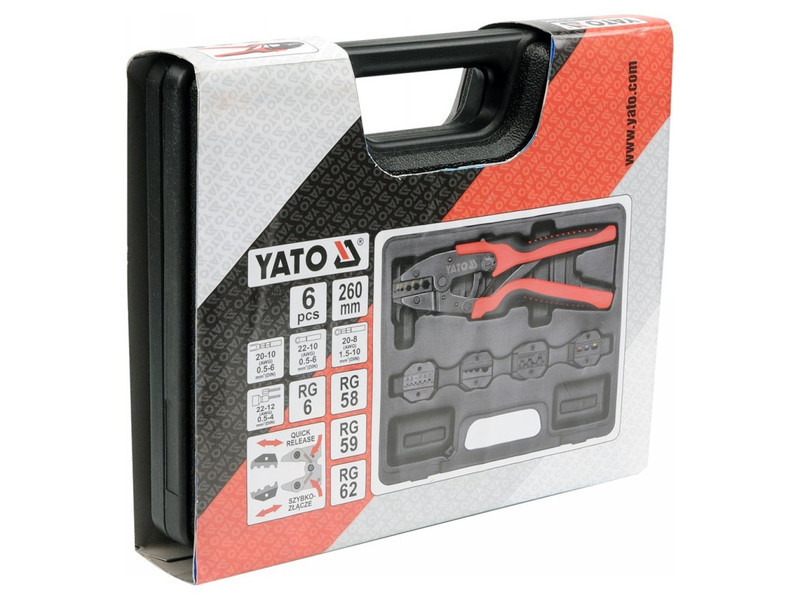

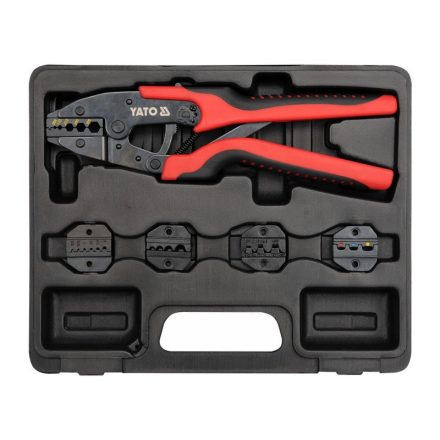

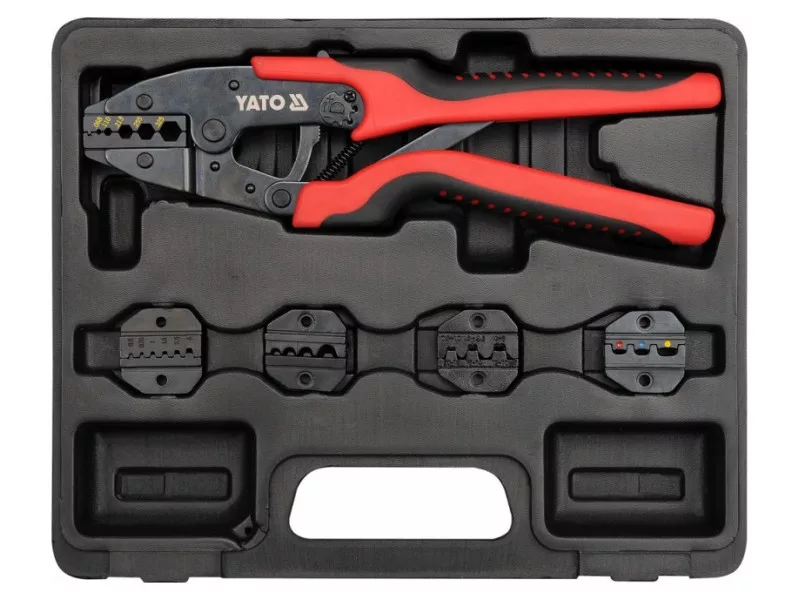

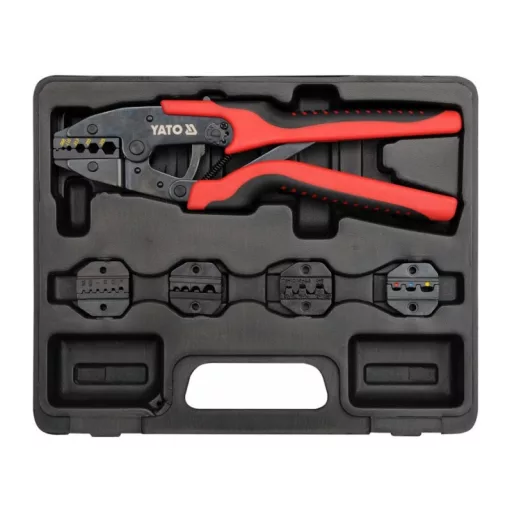

- portable carrying case
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
