| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRF |
| Tank capacity | 100 l |
| Power | 3 KM |
| Max. pressure | 0.8 / 8 / 116 MPa/bar/PSI |
| volume | 412 l/min |
| Rotations | 2850 min⁻¹ |
| Voltage | 230 V a.c. |
| Frequency | 50 Hz |
| Short-circuit current | 55 A |
| Load current | 9.3 A |
| Type | olejowy |
| Cylinders number in engine (motor) | 2 |
| Wheels | yes |
| Wheel quantity | 2 |
| Manometer | yes |
| Electric insulation class | I |
| Protection grade | IPX0 |
| Acoustic pressure | 75.1 ± 2.11 dB(A) |
| Acoustic power | 95.1 ± 2.11 dB(A) |
| Weight | 52 kg |
| Set includes | compressor, quick connector x2 |
| Symbol | YT-23311 |

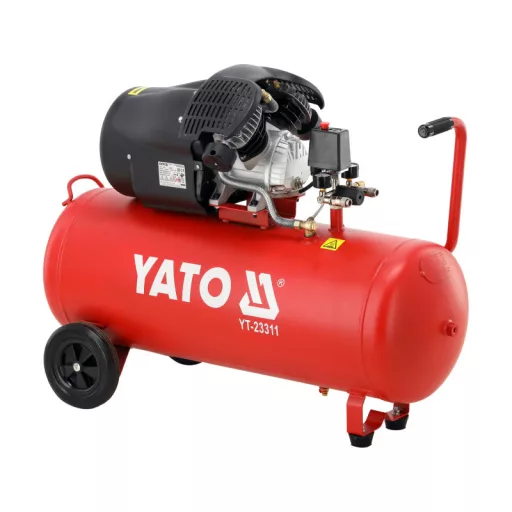

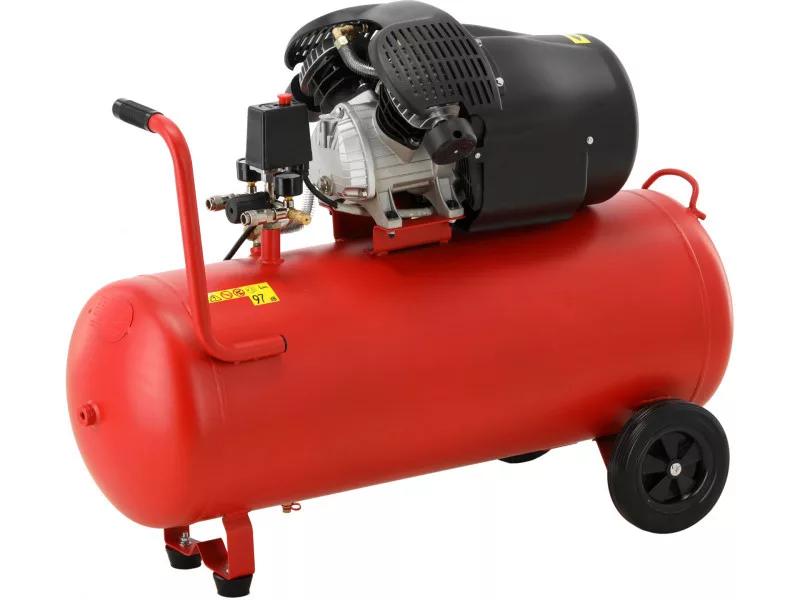

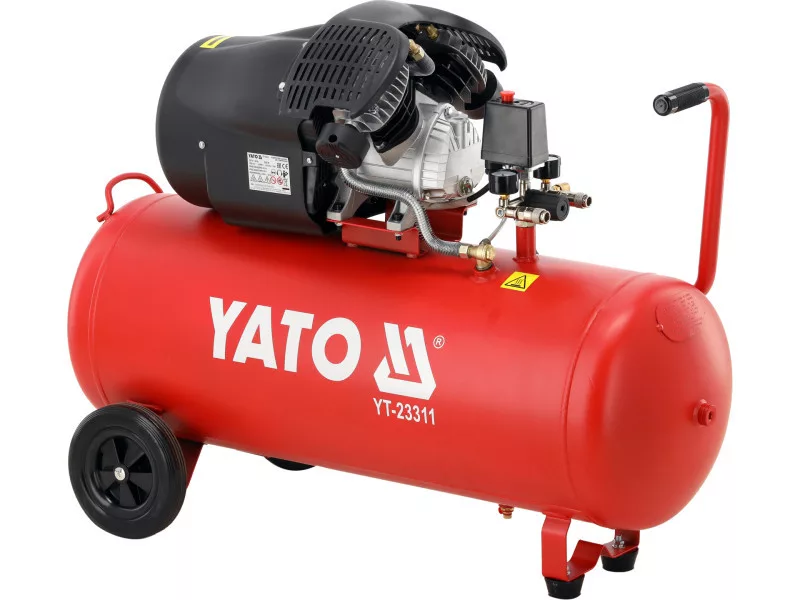

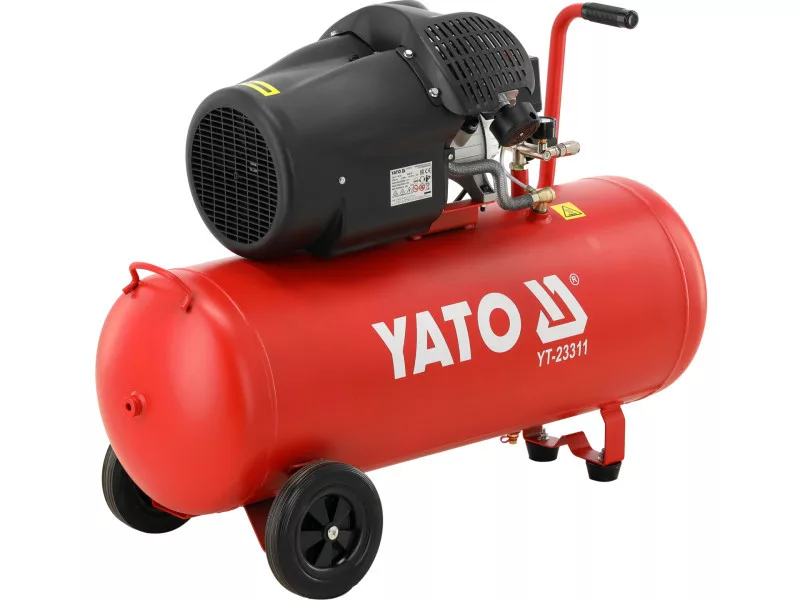

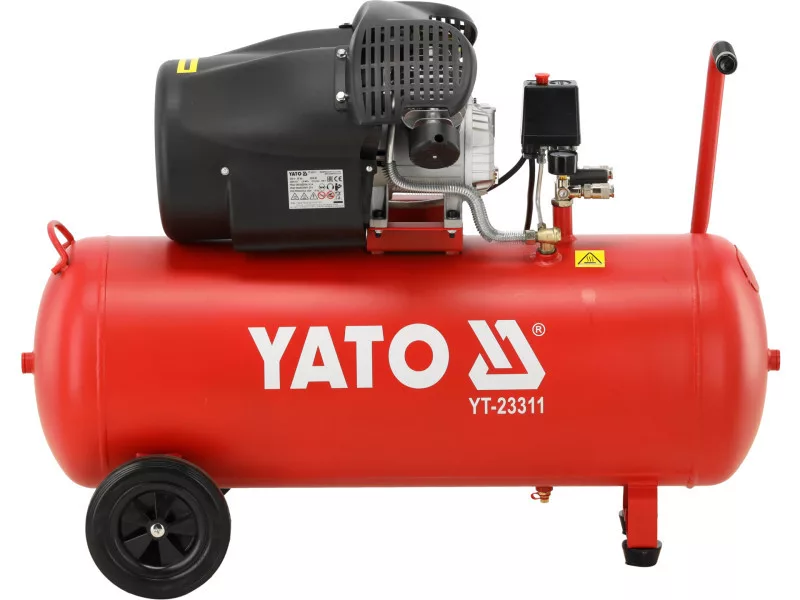

Two-cylinder air compressor with two connections and pressure control. Used for driving compressed air equipment, blowing boreholes and cleaning surfaces in industry, workshops, agriculture, construction sites.
- power: 2200 W (3 HP)
- motor speed: 2850 rpm
- capacity: 412 l/min
- max. pressure 0.8 MPa/8 bar
- tank capacity: 100 l

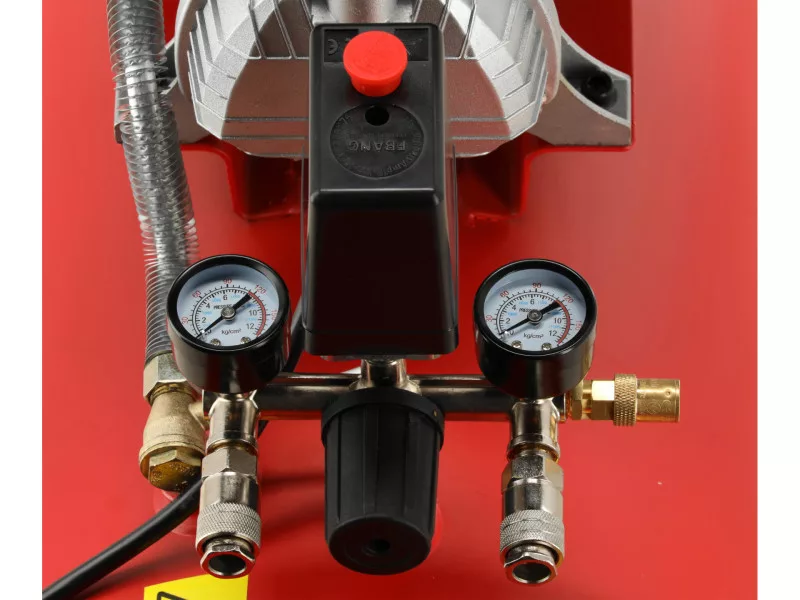

- Pressure gauge
- protection rating: IPX0
- Electrical insulation class I
- 2 wheels
- weight: 52 kg
- 2 Quick couplers included
Usage warnings:
Warning! Before first use, fill in oil and replace the transport plug by supplied oil plug.
