| Brand | Yato |
| Entity responsible for this product in the EU | TOYA S.A.More |
| Series | GRD |
| Rivets diameter | 3.2, 4, 4.8, 6.4 mm |
| Blind rivet material | aluminum |
| Length | 328 mm |
| Jaws material | CrMo |
| Surface finish | hardened |
| Handle material | carbon steel, PVC |
| Casing material | aluminum |
| Jaw quantity | 3 |
| Rotary head | yes |
| Set includes | riveter, rivets |
| Application | steel rivets, stainless steel rivets, aluminum rivets |
| Symbol | YT-36092 |

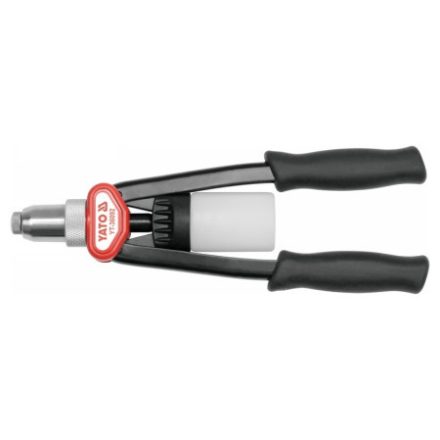

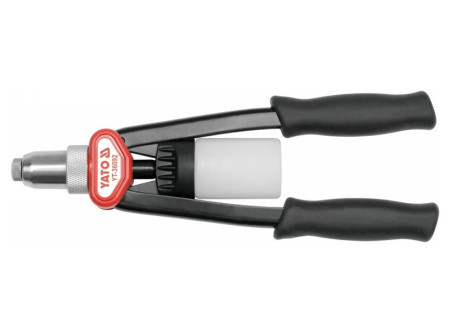

Lever riveting machine with rotating head 3.2 -6.4mm
- the special feature is the way of fixing the rivets and changing the size of the fixing sockets

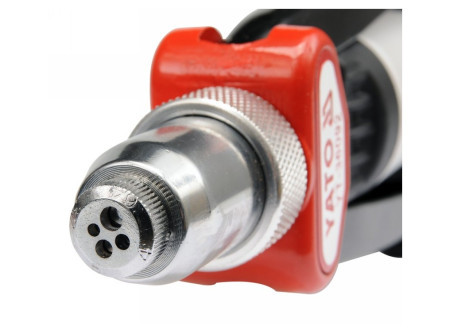

- on the rotary disc located on the head, we set the size of the rivet used and insert the mandrel into the selected hole
- the rivet is placed in the hole drilled in the material and with a smooth movement the arms of the riveting machine are squeezed
- the materials are permanently joined and the broken mandrel goes into a container at the riveting machine
Usage warnings:
Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
